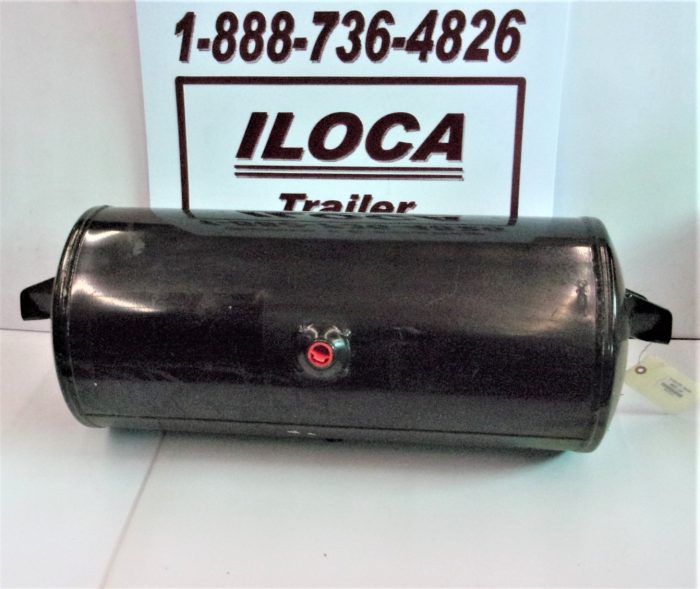

Manac Air Tank 12.0″D 223-07215 HT-1259

• 33.5″ overall length
• 32.0″ center to center, bolt holes
• 12.0″ diameter
• (2) 3/4″ NPT Ports, centered, 1 front, 1 back
• (2) 3/8″ NPT Ports, 1 per end, below mount
• (1) 1/4″ NPT Port, bottom, drain

Reference:

• Manac 223-07515
• Manac 223-07215
• HT-1259, 1259-9

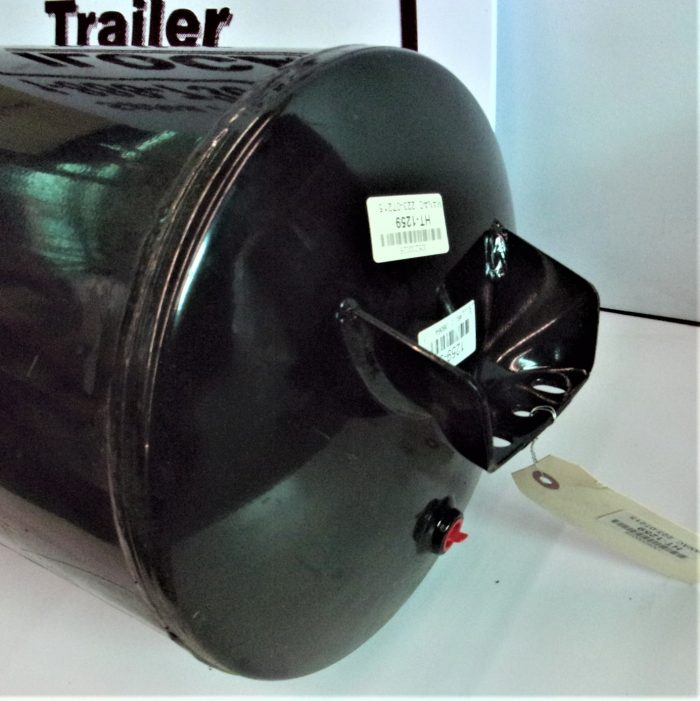

Parts Manager’s Note: At 33.5″ in length, this Manac Air Tank (12.0″D) is just a bit longer than your standard 12″ diameter, 32.0″ length air tank.  We refer to this as a “smiley face” air tank, because when the drain port is down, the mounting ears curl up.  On this air tank, the 3/8″ NPT Port on each end is located below the “smiley face.”
