JOST COMPLETE LANDING GEAR SET – Model# A400.G.19

$1415.44

Description

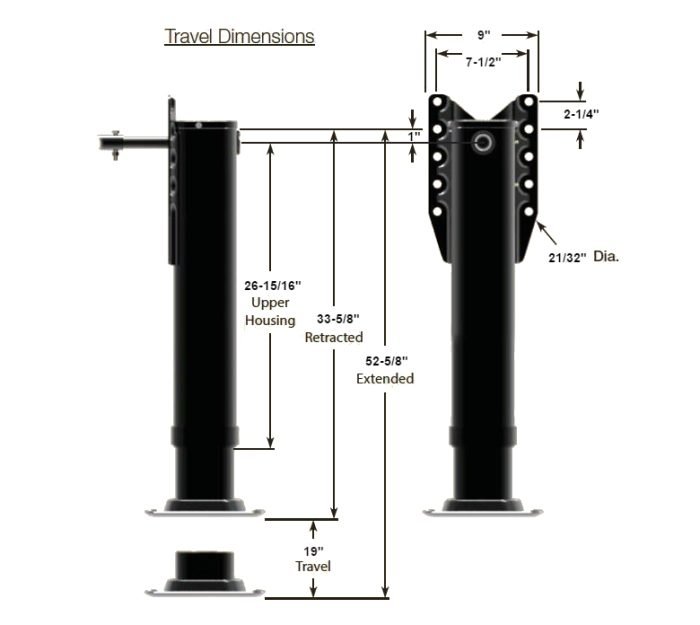

This JOST complete landing gear set (Model A400.G.19) features a 55,000 lb. lift capacity* and a static load capacity of 160,000 lbs**.  The 19″ travel and 10″ x 10″ cushion foot will work with many various trailer applications.  The internal gearbox keeps the austempered ductile iron gears protected, reduces gear wear, and eliminates shaft misalignment.  The Double “D” Crank transfers torque directly into the shaft, rather than placing the torque on the connecting bolt.

Gear Ratio:

Low Gear: 32 turns = 1″ travel

High Gear: 3.5 turns = 1″ travel

Complete Landing Gear Set includes:

  • Gear Leg
  • Slave Leg
  • Timing Bar
  • Crank Handle

*With 100 ft-lbs of input torque.

**When properly braced on a trailer.

Please call ILoca Services, Inc. at (855) 707-2910 for information on ordering.

Additional information

Weight 225 lbs
Manufacturer Model

A400.G.19

Dimension

40"W x 48"L x 20"H

W.L.L. (lbs.)

JOST COMPLETE LANDING GEAR SET – Model# A400.G.19

$1,415.44

This JOST complete landing gear set (Model A400.G.19) features a 55,000 lb. lift capacity*, and a static load capacity of 160,000 lbs**. The 19″ travel and 10″ x 10″ cushion foot will work with many various trailer applications. The internal gearbox keeps the austempered ductile iron gears protected, reduces gear wear, and eliminates shaft misalignment. The Double “D” Crank transfers torque directly into the shaft, rather than placing the torque on the connecting bolt.
