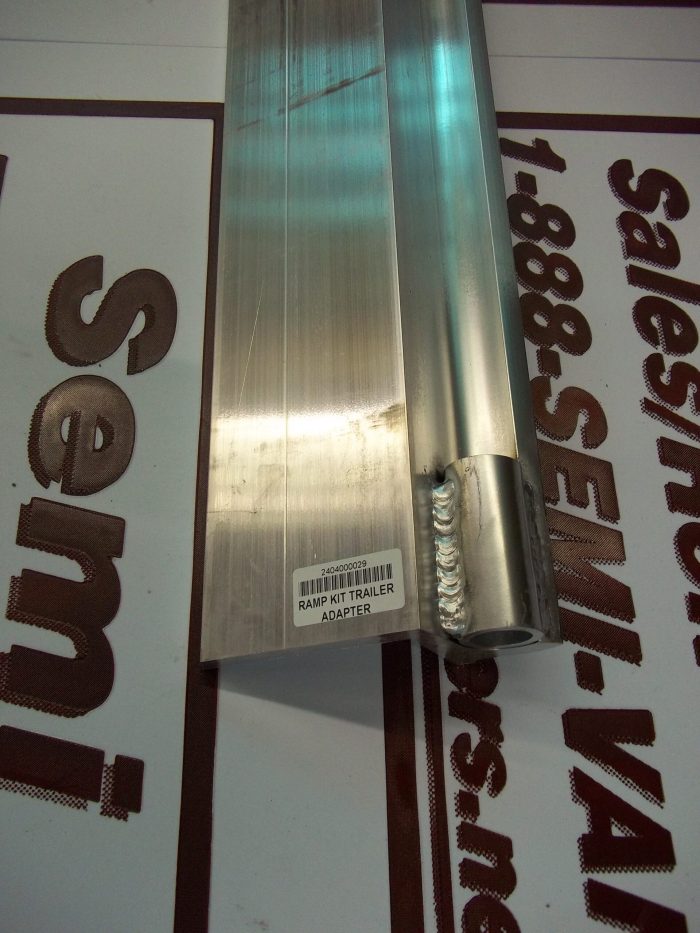

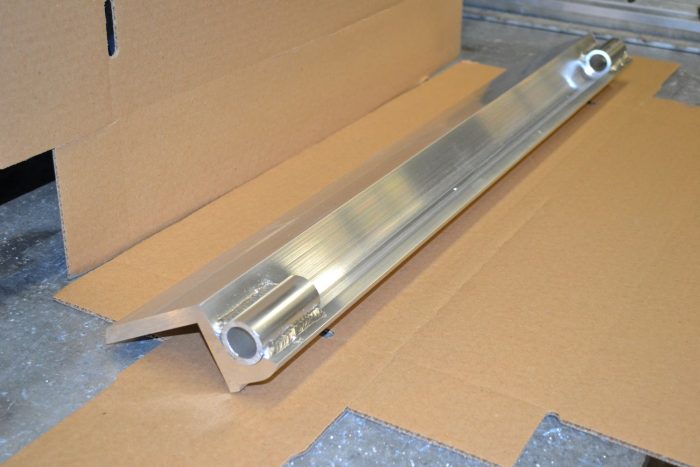

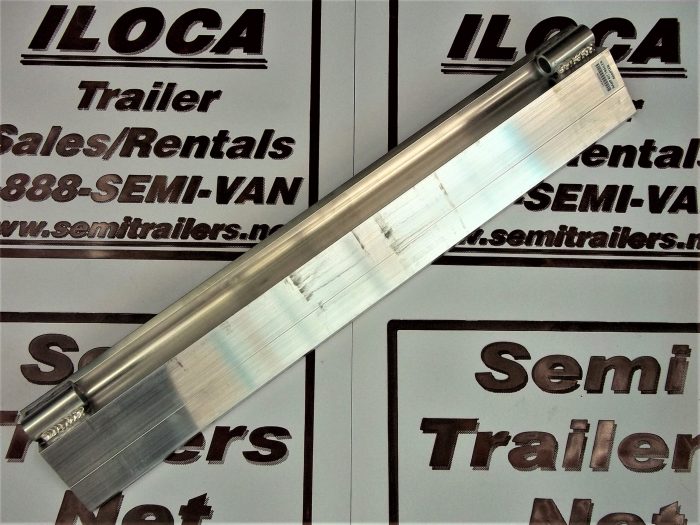

HD Ramp Kit Trailer Adapter
This is the trailer adapter for a HD Ramp Kit. This is known as the 38″ trailer adapter, as it uses the 38″ retaining rod.
Actual dimensions are: 36.25″ overall length, 6.125″ high & 2.75″ deep. The adapter uses a 0.99″ hole for the retaing rod.
The flange face that can be bolted or welded onto the trailer is 4″ high. Between the retaining rod eye holes, you have 30.25″ of travel space, to move the ramp from side to side.
| Weight | 15 lbs |
|---|---|
| Manufacturer Model | SDY-TA |
| Dimension | 36.25L x 6.125W x2.75D |
