Description

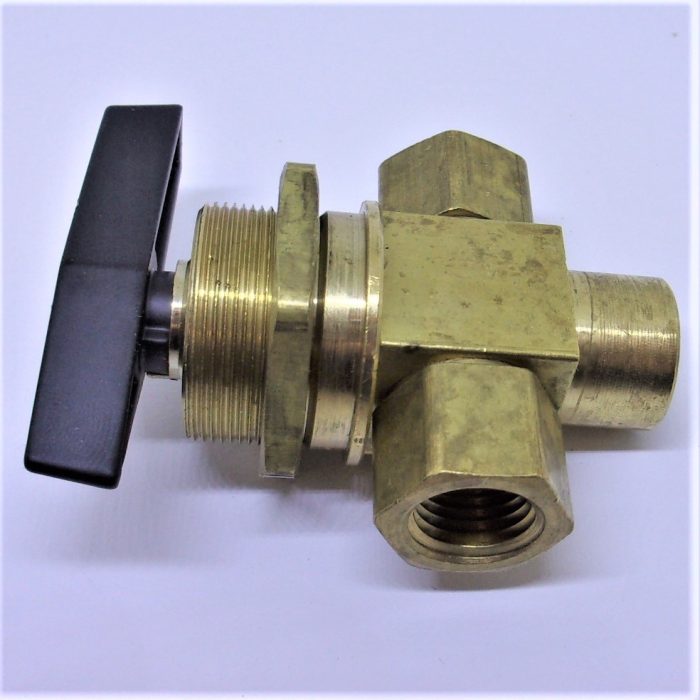

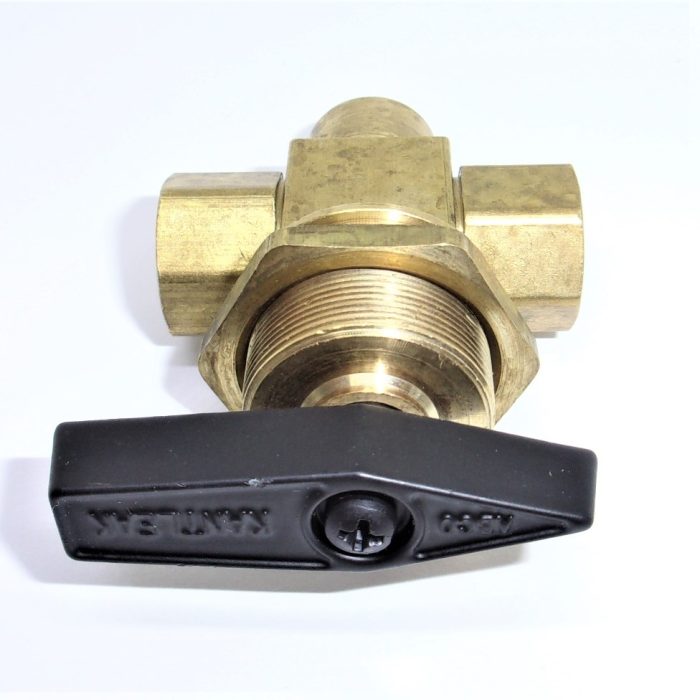

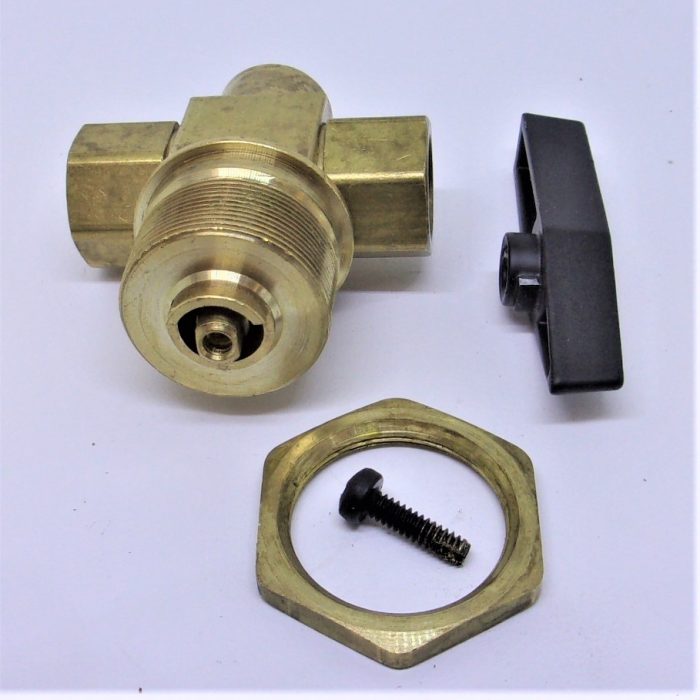

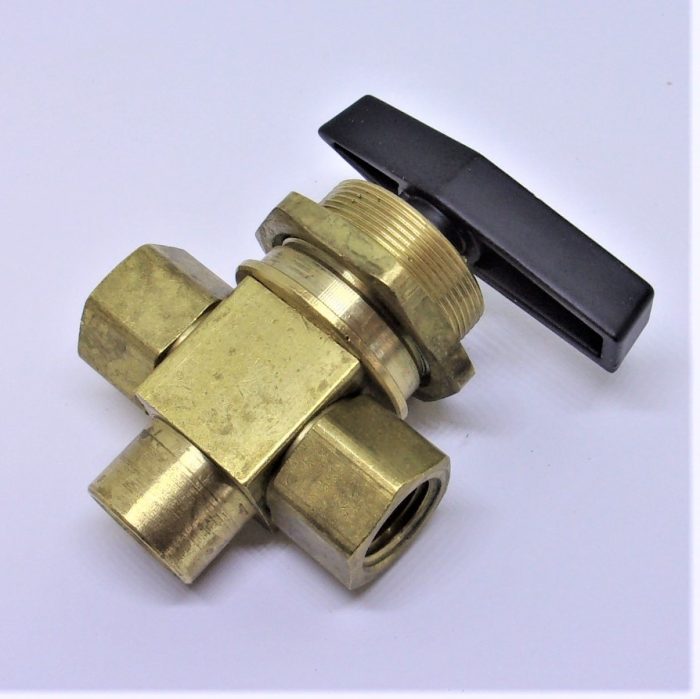

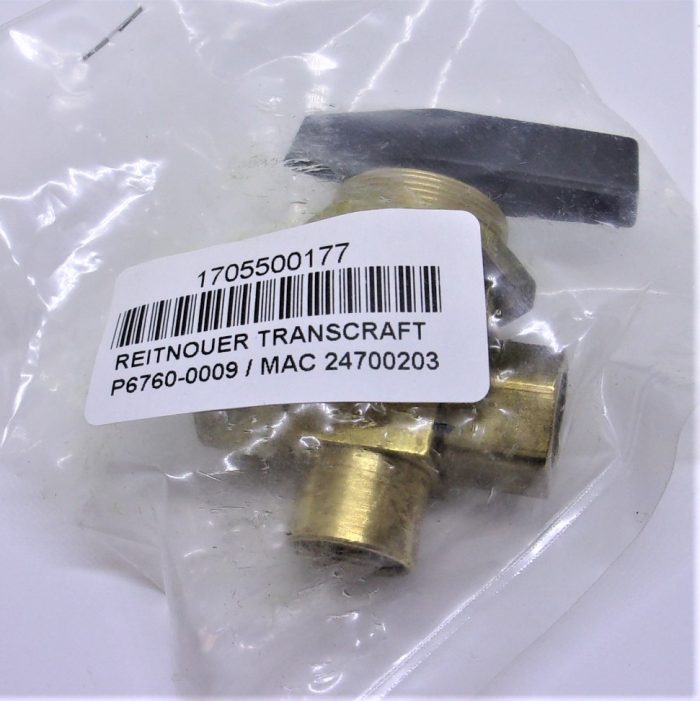

Brass Ball Valve Reitnouer P6760-0009 / MAC 24700203

Brass Ball Valve, typically used in the slide lock suspension circuit, to air up or dump the air circuit.

• Mounting Hole 1.0″ (25.4mm) Diameter
• .370″ Maximum Pass Thru, Beam, Frame or Mounting Block
• 1.85″ Width
• 2.55″ Overall Height w/Turn Knob Attached
• 1.25″ Brass Nut Wrench Size
• (3) 1/4″NPT Ports

Part Managers Note: We see this valve used in late model Reitnouer, Transcraft, MAC & some Benson trailers.  Almost always used to control the slide lock.  The valve is very similar in use & function to a Hendrickson VS-22535 ball valve, except for the much larger mounting hole diameter.
