Wabco ABS ECU Power Cable S449-328-010-0

Wabco ABS ECU Power Cable S449-328-010-0

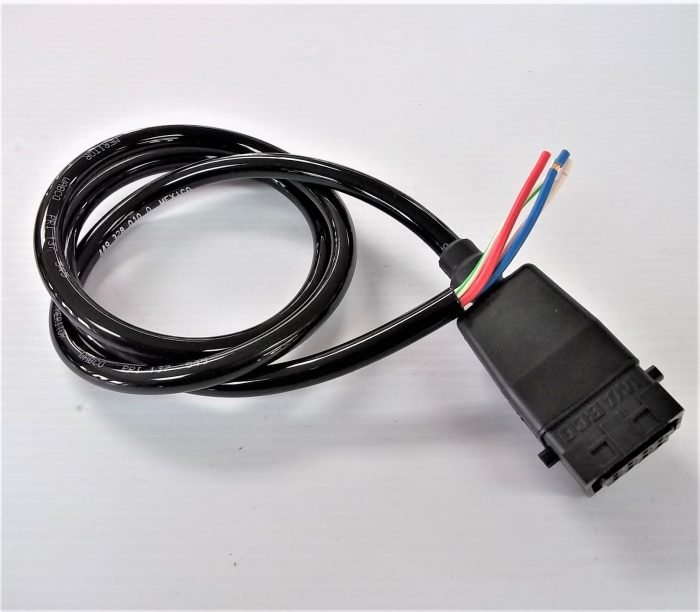

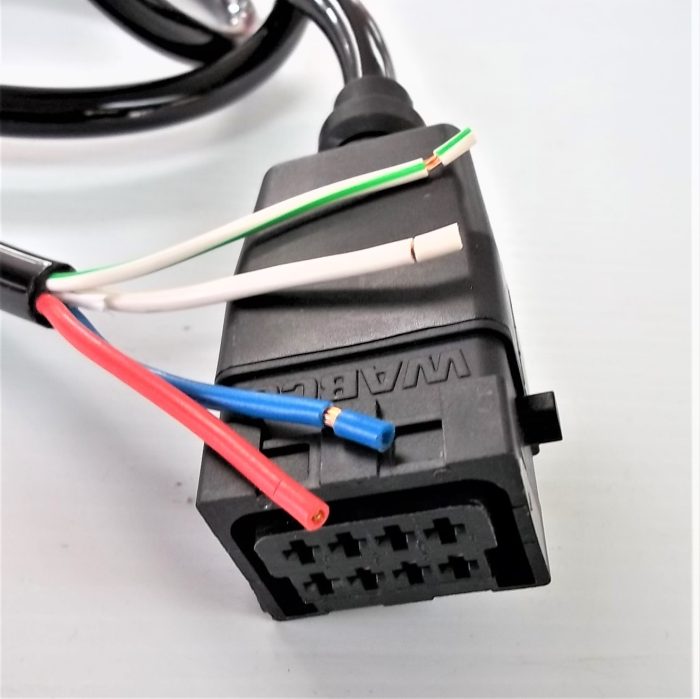

This is called a “Blunt Cut” power cable. It was designed to fit applications where a Wabco Easy Stop Enhanced ABS ECU Power cable with complete molded ends is not available.  The molded end fits a Wabco Easy Stop Enhanced ABS ECU unit.  The “Blunt Cut” end (the bare wires) is to be connected into an existing trailer power cable. Wiring connections are color coded & simple:

• Green/White Wire – ABS Light
• Blue Wire – Power
• Red Wire – Stop
• White Wire – Ground

Length of the Power Cable is:

• 1.0M – 3.0′ Length
