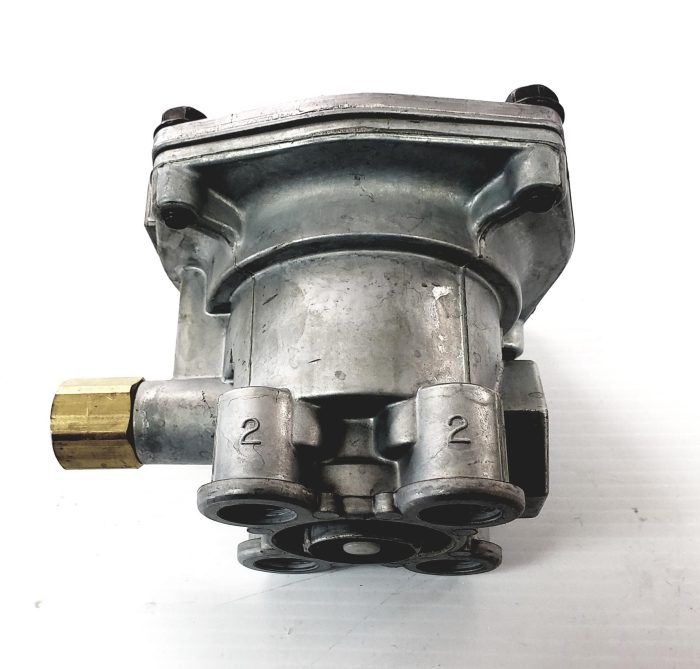

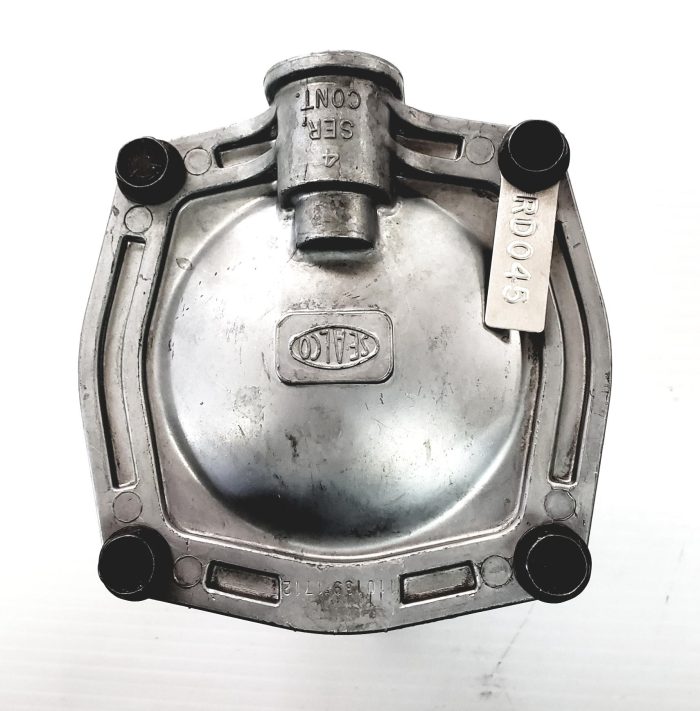

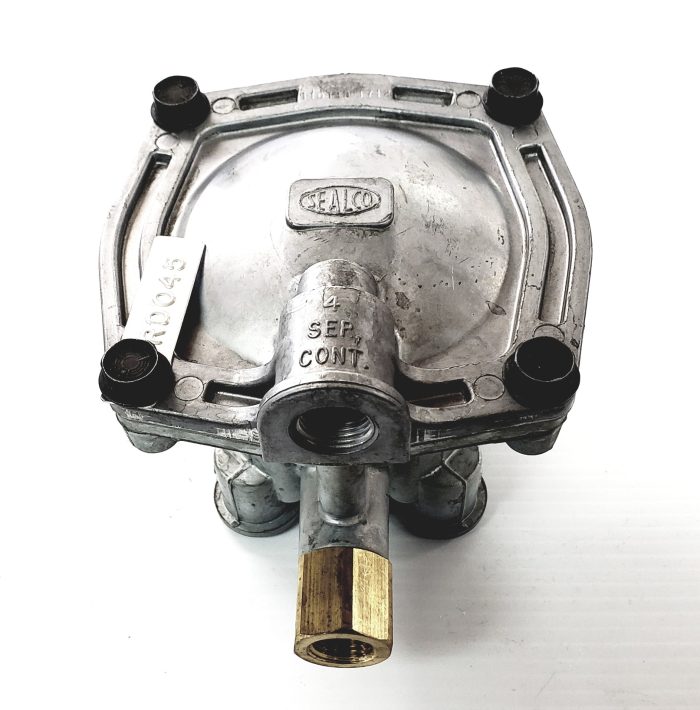

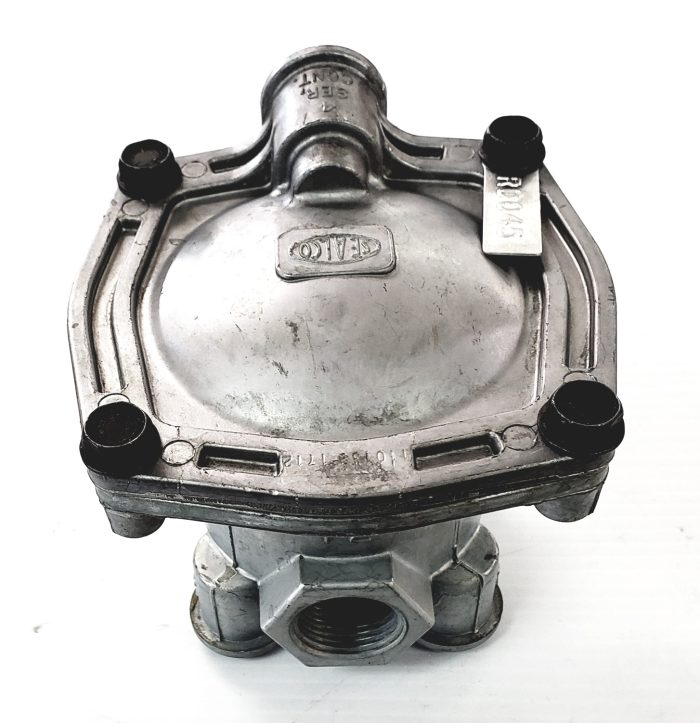

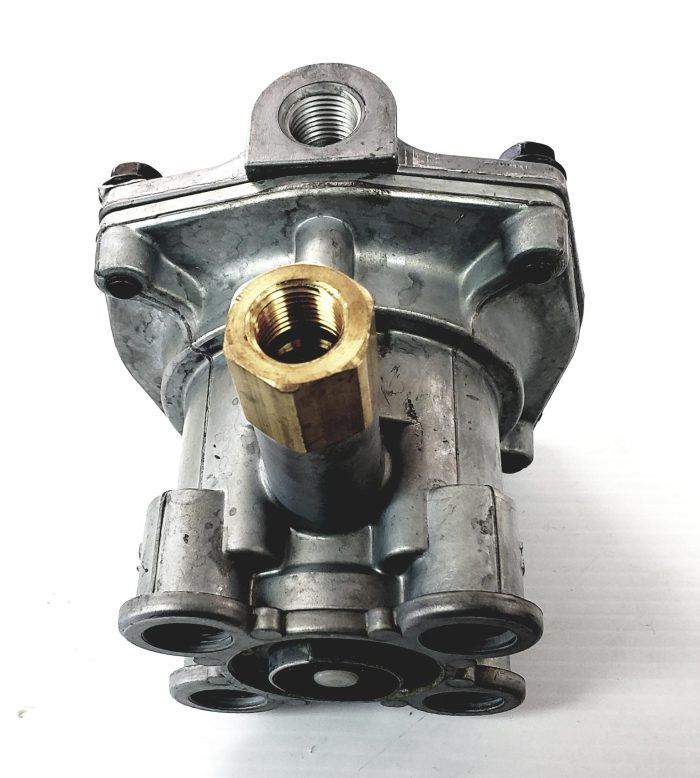

Sealco Relay Valve 110139

$152.95

Description

Sealco Relay Valve 110139

Ratio Relay Valve

The Ratio Feature is considered a benefit in hard stop situations. It refers to the relationship between the control air pressure to the valve and the delivered air pressure from the valve to the service brake chambers. During normal stops, a 1:1 ratio exists between the control and delivered air pressures. In a hard stop the ratio momentarily changes to 1:1.5 until valve lap-off occurs and the 1:1 ratio is restored. This change takes place in less then 1/100th of a second. The preferred application for valves with this feature is controlling tandem axles.

Note: Valves with a ratio feature should not be used on converter dollies, lift axles or trailer turnable axles!

Features of the Sealco Relay Valve 110139:

  • 3/8″NPT Auxilliary Supply Ports
  • 3/8″NPT  Control Port
  • 3/4″NPT Resevoir/Air Tank Ports
  • J1860 Tag – RD045
  • 4.5psi Nominal Crack Pressure

Additional information

Weight 5.1 lbs
Manufacturer Model

110139
