Description

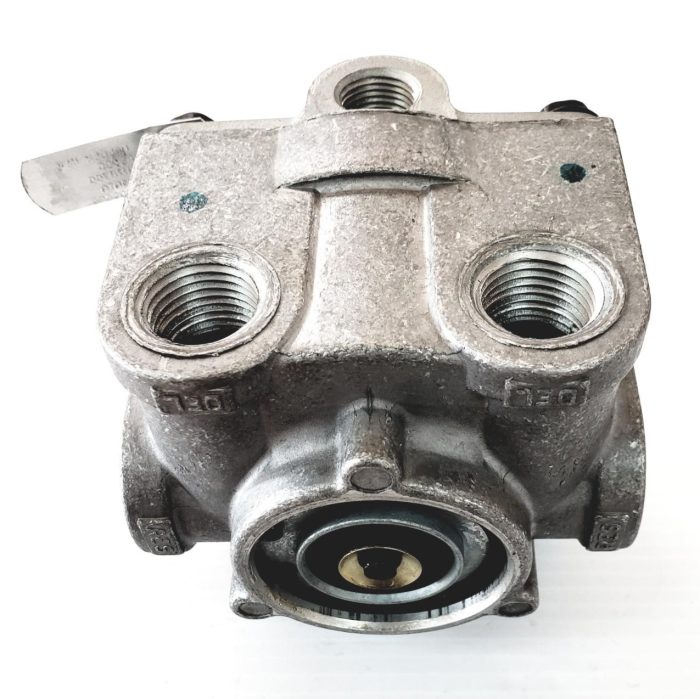

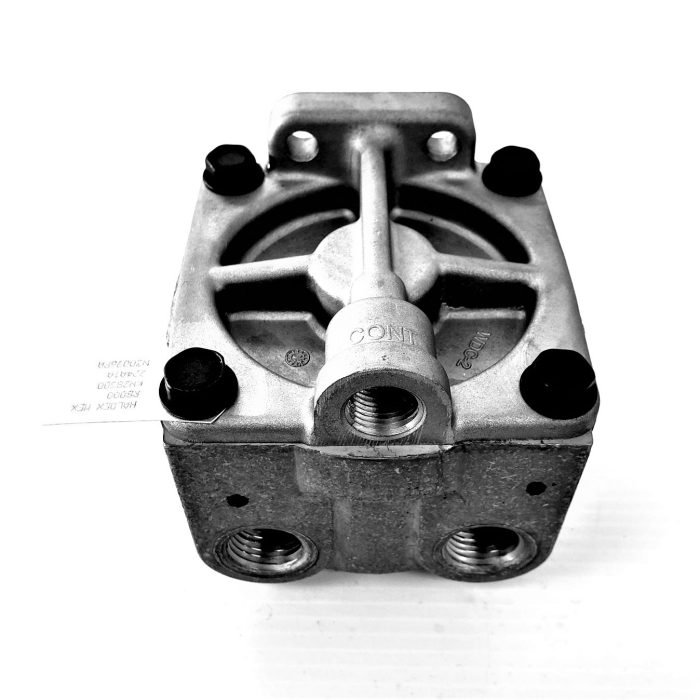

Haldex KN28300 Fast Balance Air Valve

FAB Relay Valve – Fast Air Dolly – Two Delivery Ports OEM # N30096PA

• Speed Up, Fast Air Relay
• Used On Converter Dollies, LWB & Towing Trailers; Accelerates Control Signal, Meets FMVSS121 Pressure Differential Requirements
• Rotatable Cover
• Replaces Bendix R8P & R12P

Specifications:

• 1/2″ NPT Supply Ports (2)
• 1/2″ NPT Delivery Ports (2)
• 3/8″ NPT Control Port
• Crack Pressure Differential 0 PSI
• Mounting Holes .34″ Diameter, 2.50″ Center To Center
