Description

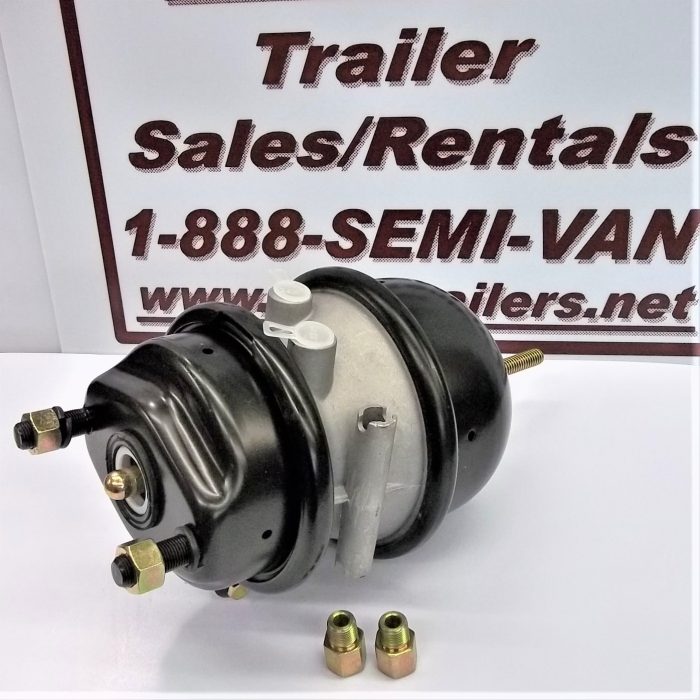

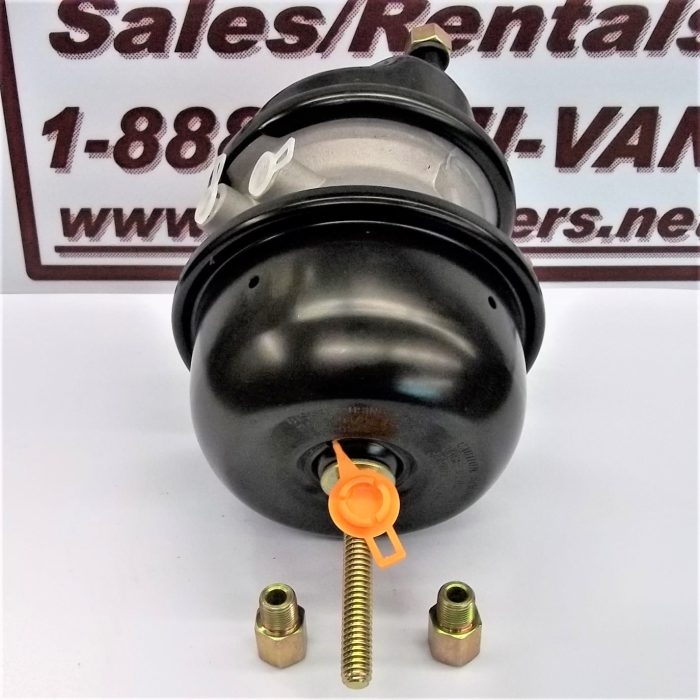

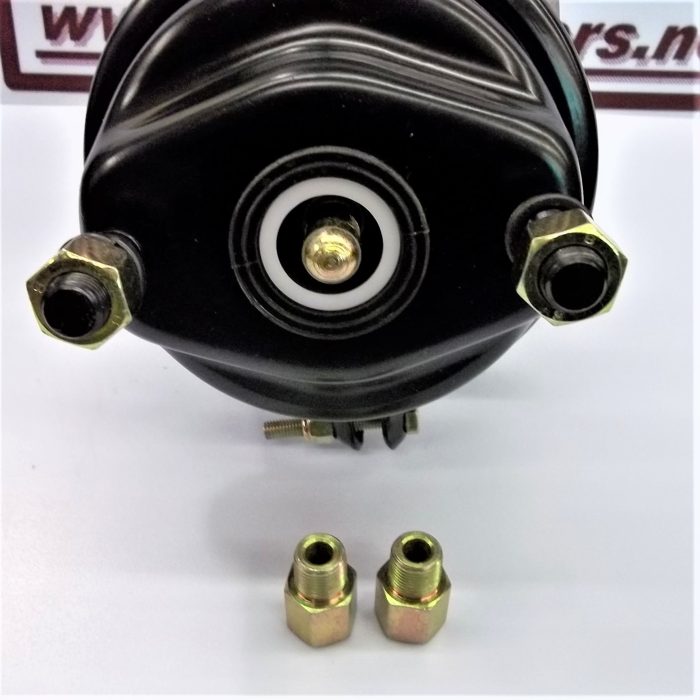

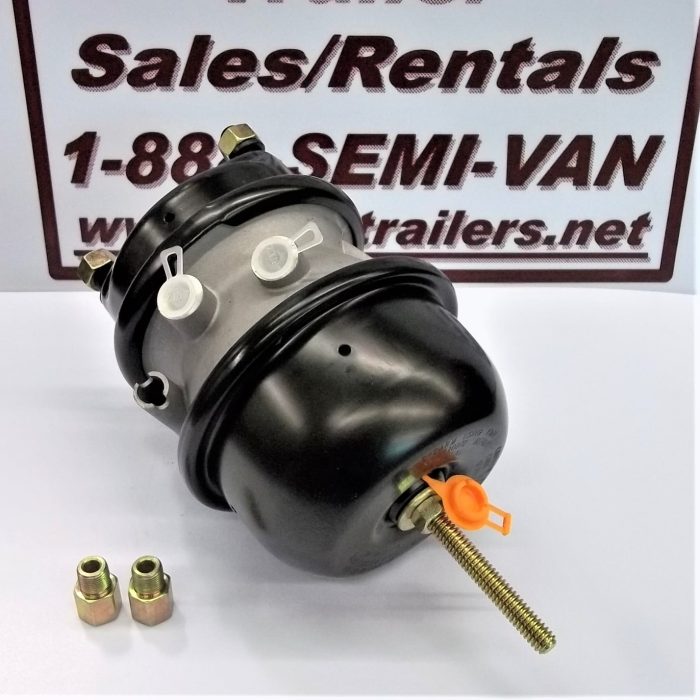

Combination Disc Brake Chamber 18/24 ALSD1824

ALSD1824 Services Wabco & Bendix Trailer & Drive Axles

Reference Cross: Bendix Part # K043329

This is a dual diaphragm brake chamber used in disc brake applications requiring both service & emergency sides.

Features:

• Hi-Output
• Thermal Resistant, Fiber Reinforced Diaphragms
• 11-Gauge Casing
• Weld-Reinforced Grade-8 Bolts
• H-Temp TPR Dust Boots
• Zinc Coated Plungers
• OE-Grade Coated Springs
• Sealed Plunger

Specifications:

• Bolt Centers 120.70mm
• Bolt Thread M16x1.5
• Bolt Length 38mm
• Stroke From Cover .6″ 15mm
• Full Stroke 2.25″ 60mm
• Port Thread M16x1.5 (includes (2) 3/8NPTF if required)

Cross References: K026453, K043294, K126026, K126027, K026451, K043312, K052174, K052175, 5017127, 5017128, 5017129, 5017130, 5017661, 5017662, 5020487, 5020488, 5020489, 802477, TRB1824DT, TRB1824DT051, 1816HTND2-3669, 1824TND2H, GC1824D
