Description

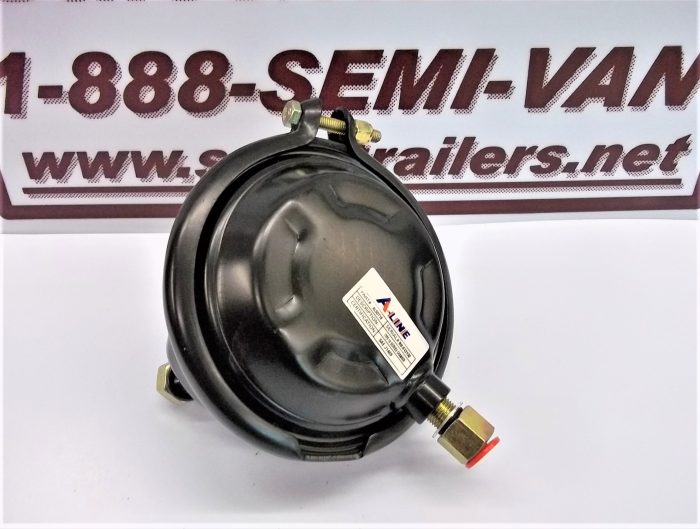

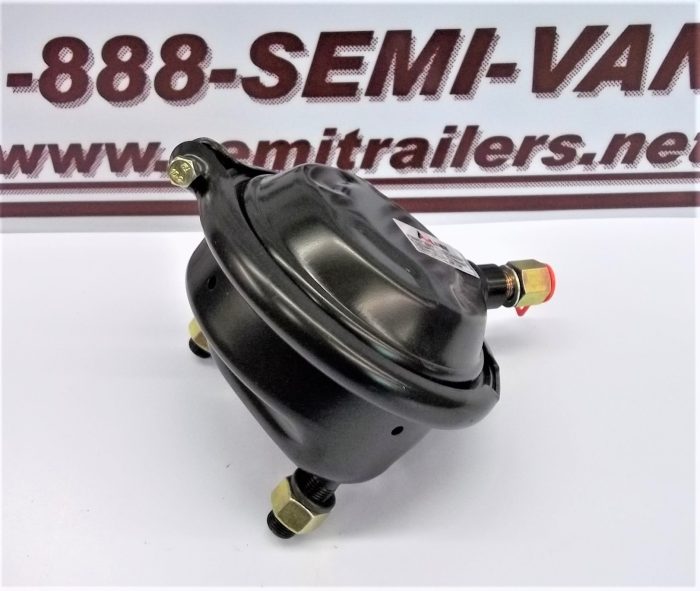

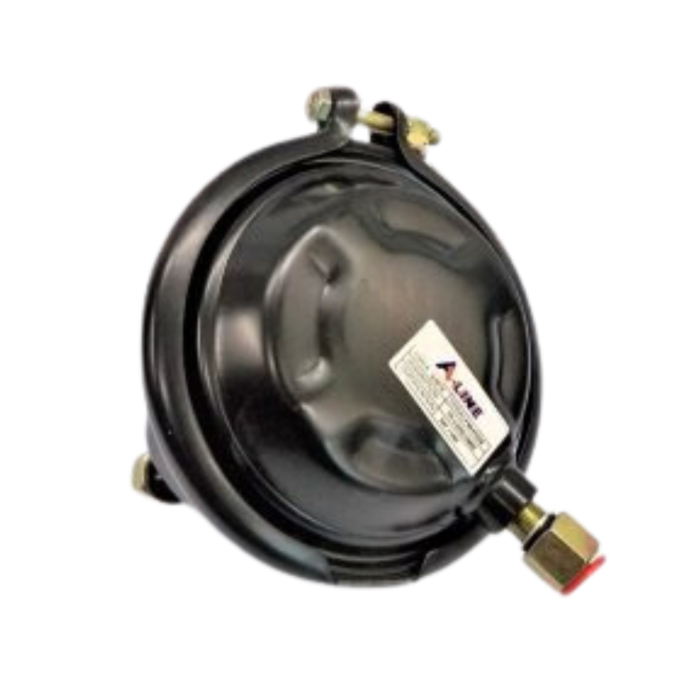

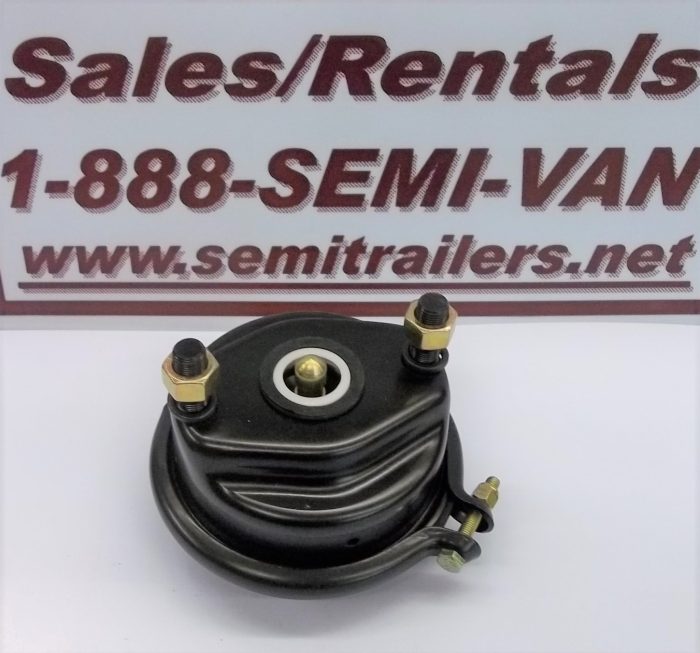

Disc Brake Air Chamber ALSDT18

Type 18 Steer Service Chamber for Bendix, Knorr & Wabco applications.  Reference: T18DISC

Features:

• Weld Reinforced Grade-8 Bolts
• 11-Gauge Steel Casing
• Sealed Hi-temp TPR Dust Boots
• Zinc Coated Plungers
• OE-Grade Coated Springs
• Thermal Resistant Fiber Reinforced Diaphragm

Specifications:

• Bolt Centers 120.7mm
• Bolt Thread M16x1.5
• Bolt Length 37mm
• Stroke From Cover .60″, 15mm
• Full Stroke 2.5″, 64mm
• Port Thread M16x1.5 (includes 3/8NPT adapter if required)
